The Merge: How Ethereum Actually Switched to Proof of Stake

1. 1

   No new chain, no downtime: an engine swap

   On September 15, 2022, Ethereum's execution layer stopped listening to miners and adopted the Beacon Chain's consensus — a combined protocol called Gasper. Inside it, LMD GHOST decides which branch of the chain has the most validator support, while Casper FFG decides when that choice becomes irreversible. The animation this guide is built from walks through exactly that machine: the one that quietly took over from proof of work, one block after the last mined one.



2. 2

   First register, then validate

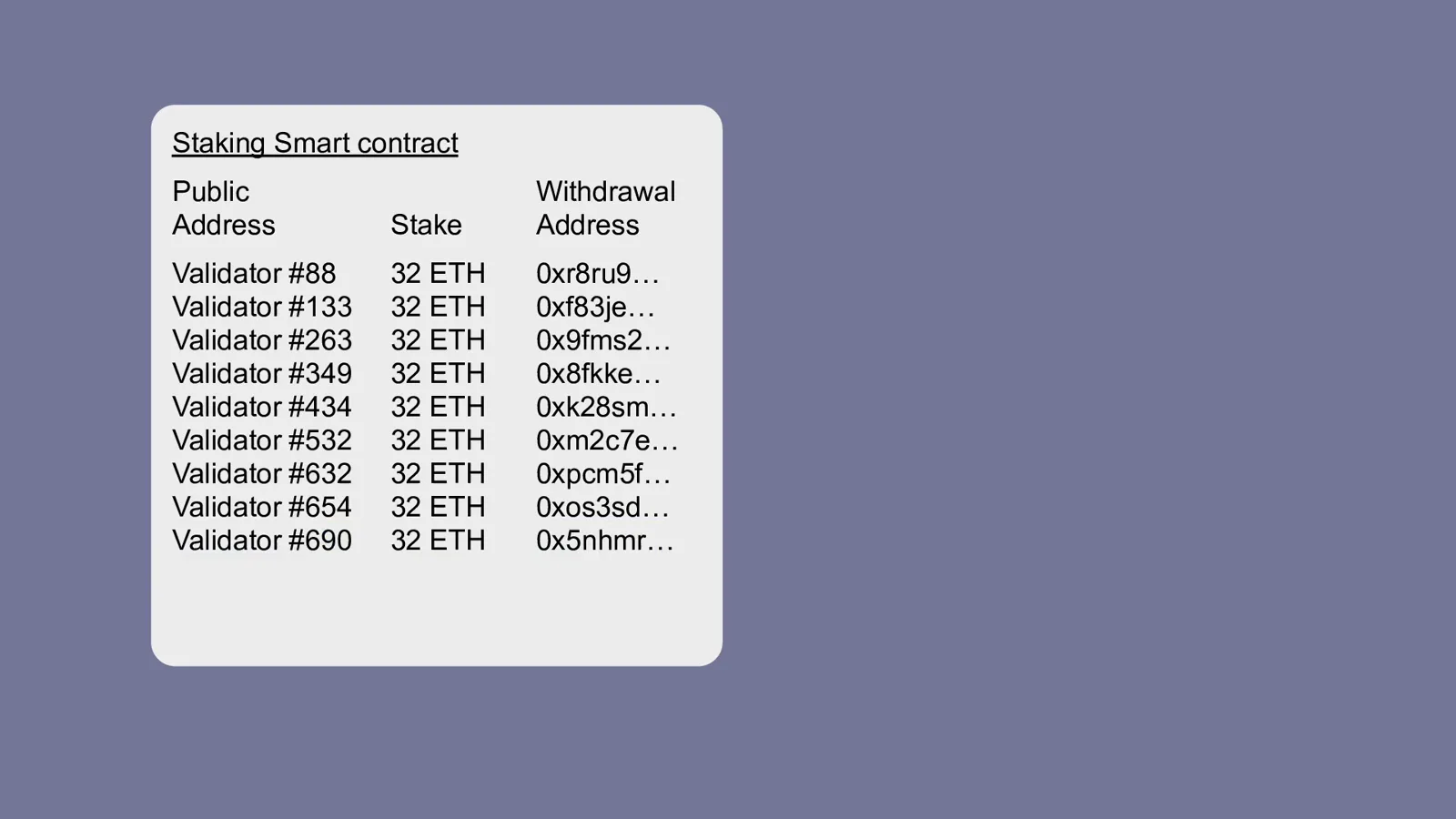

   Proof of stake starts with a register. To become a validator you deposit exactly 32 ETH — along with a public key and a withdrawal address — into a staking contract that lists every participant for the whole network to audit. The chain that keeps this register, the Beacon Chain, went live on December 1, 2020, and by merge day it held deposits from more than 400,000 validators: over 13 million ETH of stake. The Merge simply let this mining-free consensus layer take over block production.



3. 3

   The signature is the proof

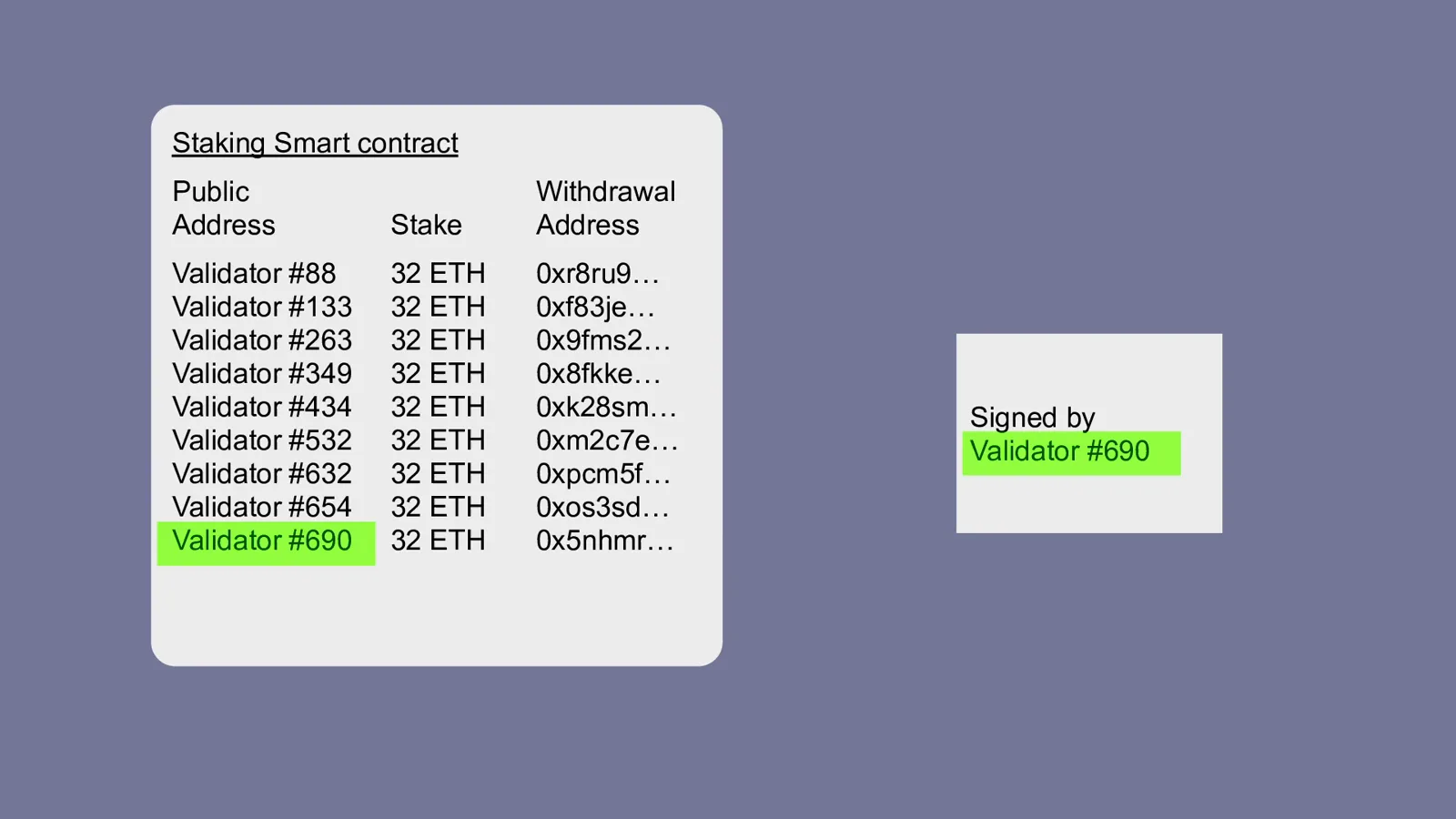

   Whenever a validator signs something with its private key, anyone can check the register, confirm that this signer controls 32 ETH, and treat the signature as the proof of stake itself. Because the stake is locked up, it can be punished: get caught misbehaving and part of your 32 ETH is burned — a process called slashing. Fall below 16 ETH after penalties and you are ejected from the contract altogether, so an attacker gets a handful of attempts, not unlimited ones.



4. 4

   Two families of consensus, one chain

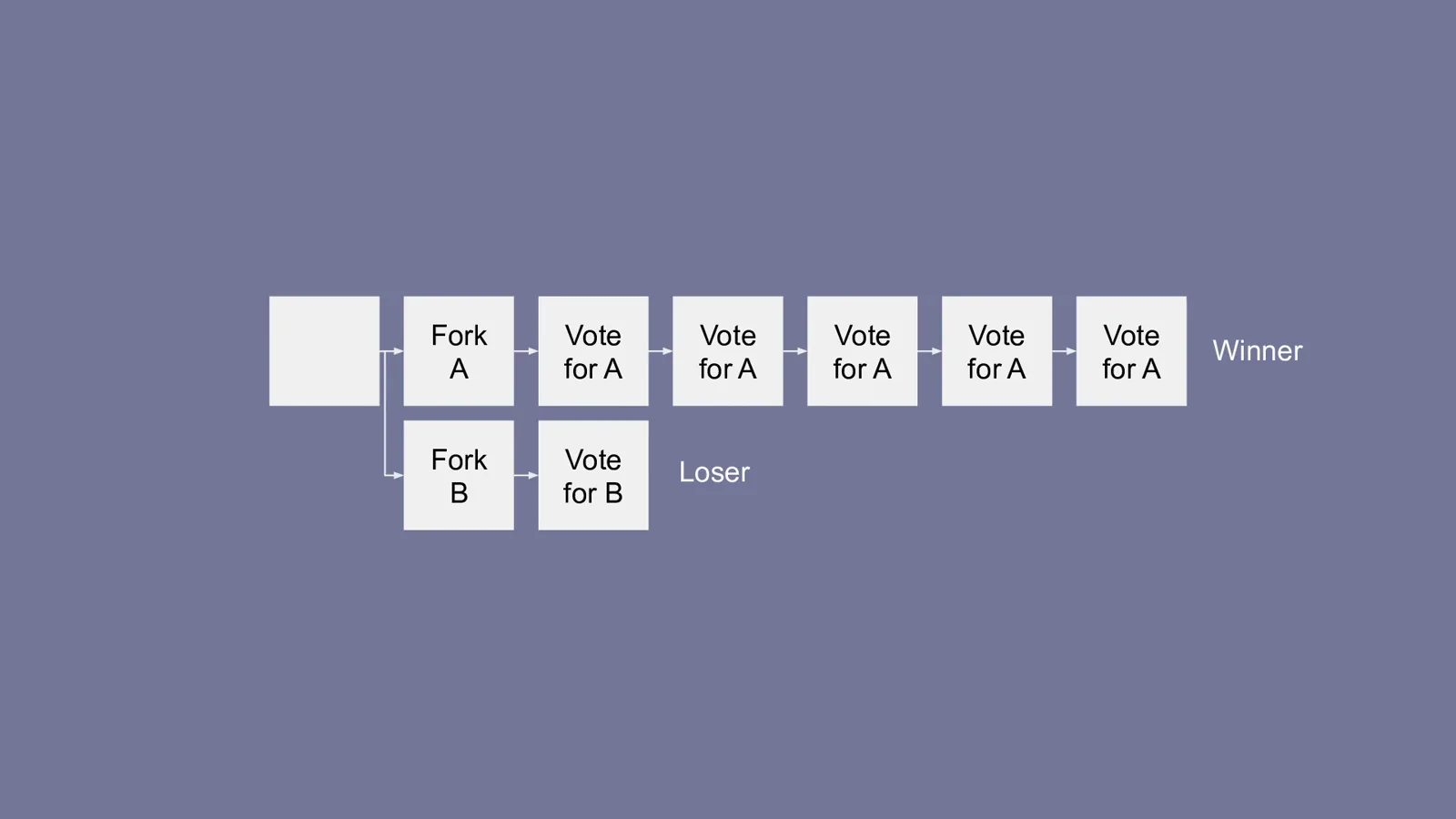

   Cryptocurrency consensus comes in two broad families. Longest-chain systems — Bitcoin's model — treat every block added to a branch as a vote for that branch, and the longest chain wins. BFT-style systems instead run rounds of explicit voting and finalize when a supermajority agrees. Ethereum ended up combining both: a tweaked longest-chain rule called LMD GHOST handles day-to-day fork choice, and a BFT overlay called Casper FFG stamps the result as final. The Merge put that hybrid in charge of mainnet.



1. 5

   One validator per slot: a two-month wait

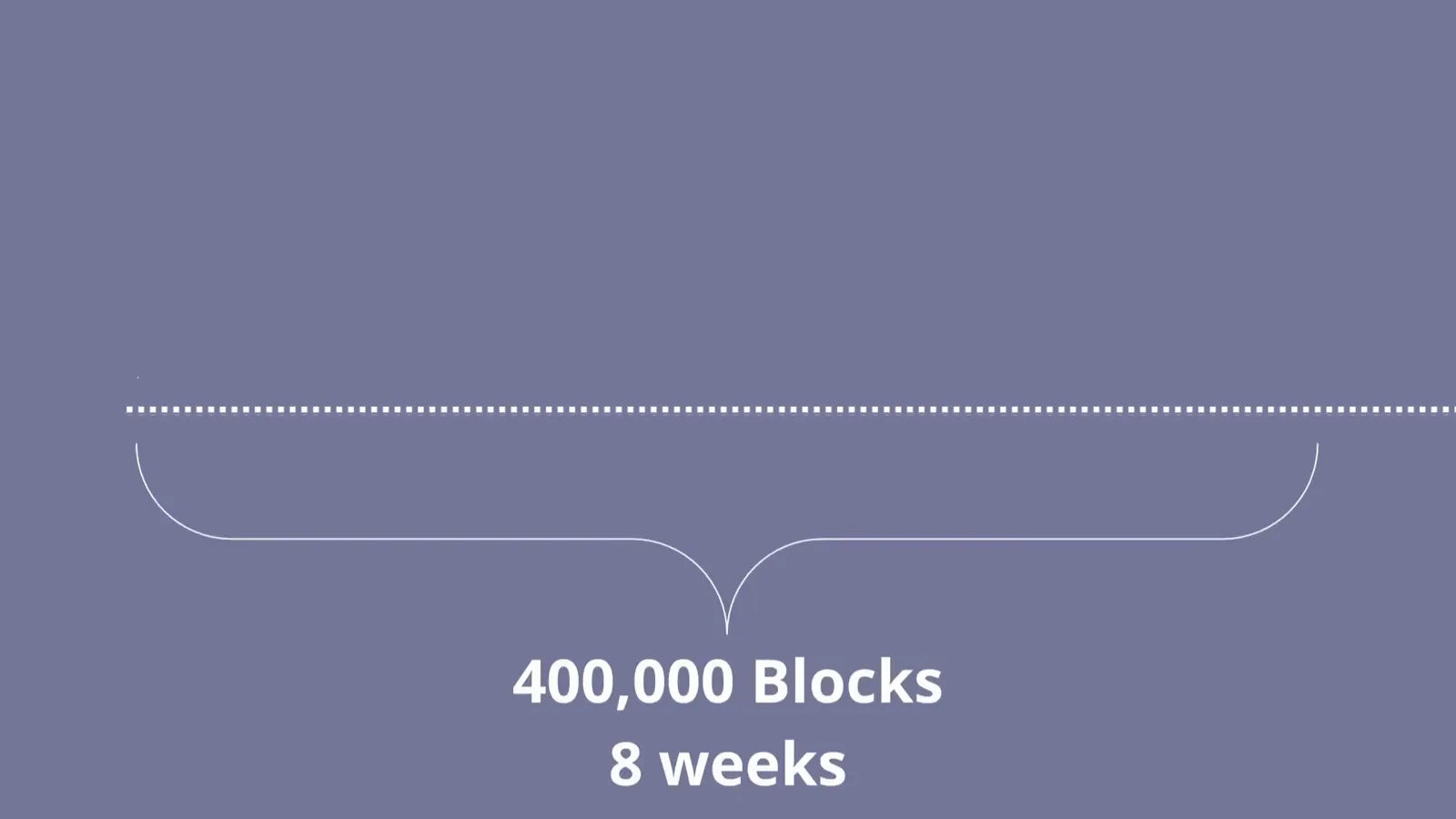

   Under proof of stake, blocks are produced in 12-second slots, and only one validator per slot gets to propose. With roughly 400,000 validators staking, the arithmetic gets ugly: any single validator would wait about eight weeks between proposals, and even collecting votes from just a tenth of them would take around five days. If producing a block were the only way to vote, consensus would crawl — so Ethereum invented a second, far lighter way to vote.



2. 6

   Attestations: voting without proposing

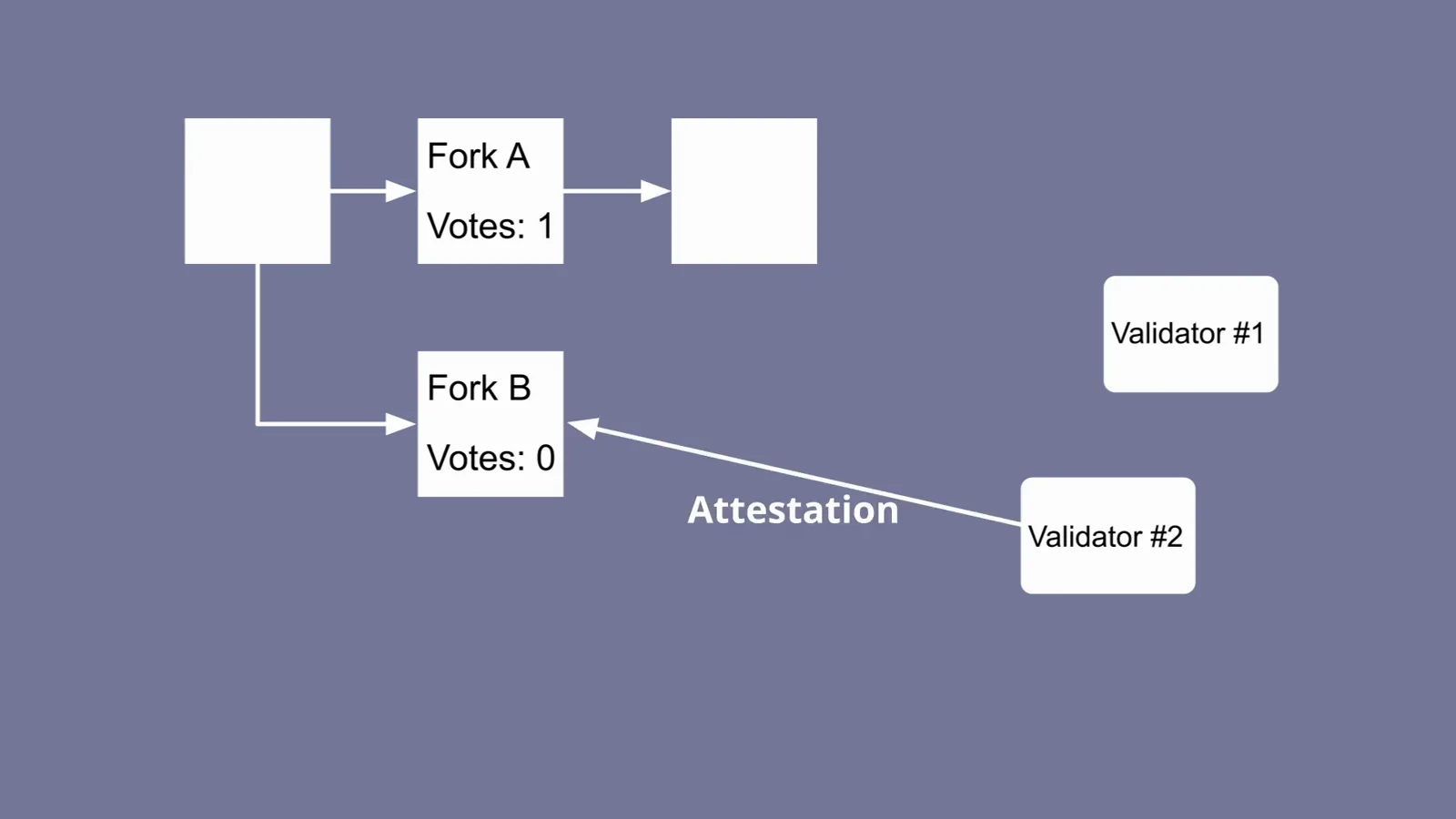

   That lighter vote is an attestation. Instead of building a block, a validator signs a statement about which block it believes heads the chain — voting without proposing. Attestations carry real weight: when two forks compete, the one with more attesting validators behind it wins, even if it is the shorter branch. And if the designated proposer fails to produce within the first four seconds of a slot, the attesting validators vote for the previous block instead — the chain never idles.



3. 7

   The heaviest chain wins

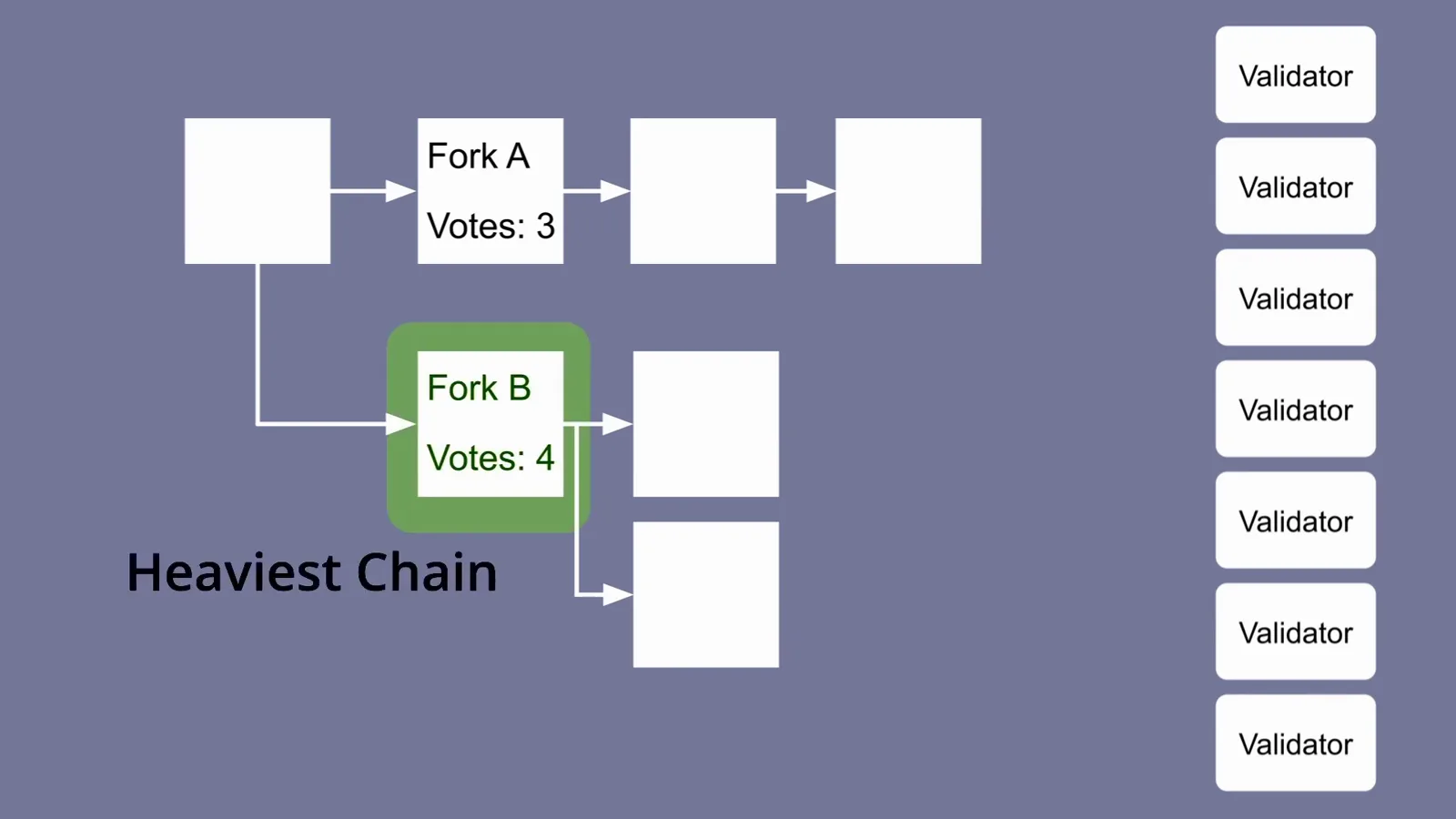

   This is LMD GHOST in action: count the attestations on every branch, not just the blocks on the longest one. In the animation, Fork A is longer, but Fork B collects more attestation weight — so B is the heaviest chain, and the one new blocks should extend. Weight beats length. It was this rule, running on the Beacon Chain since December 2020, that let the execution layer be absorbed on merge day without a chain split.



1. 8

   Thirty-two slots make an epoch

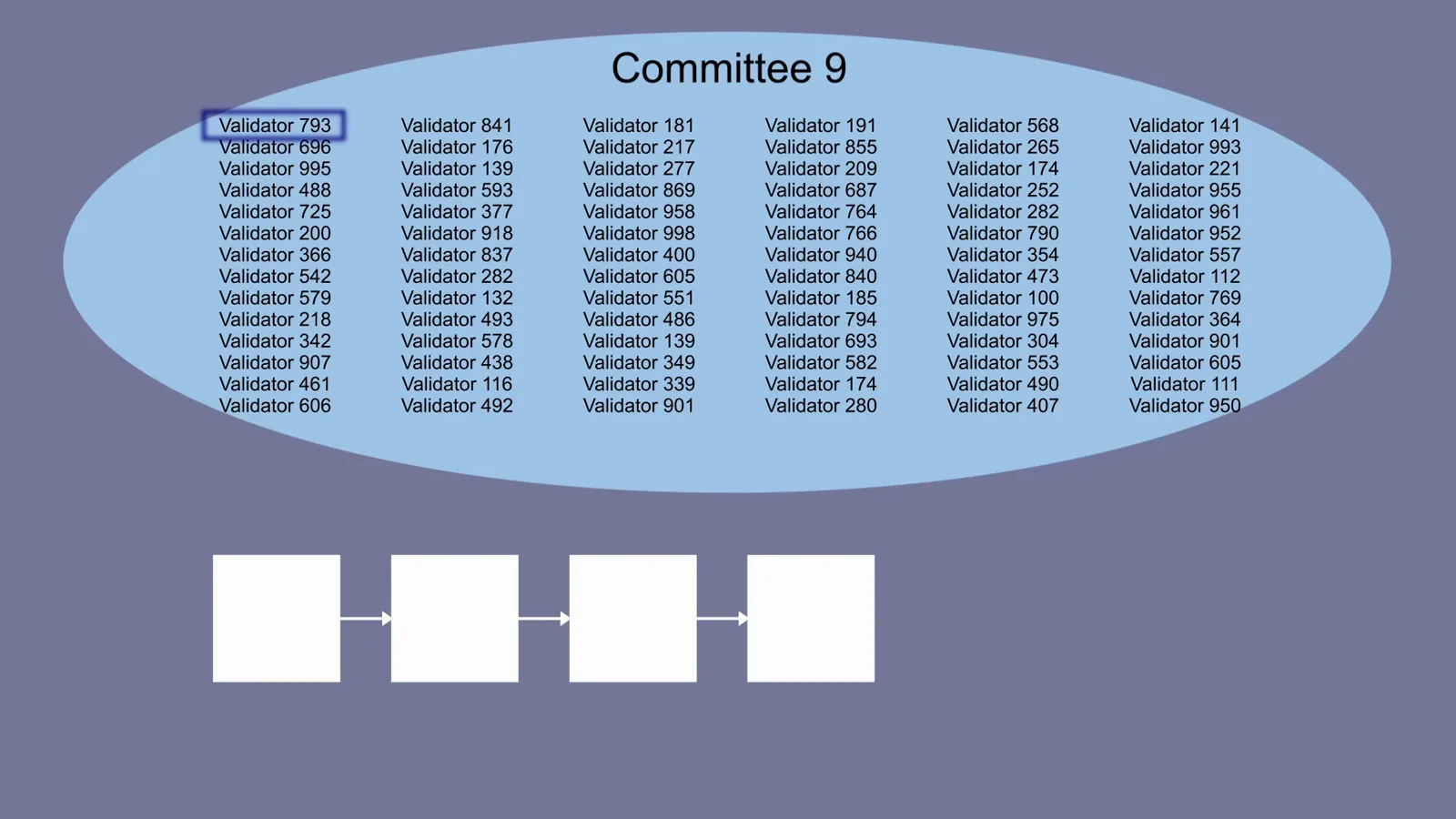

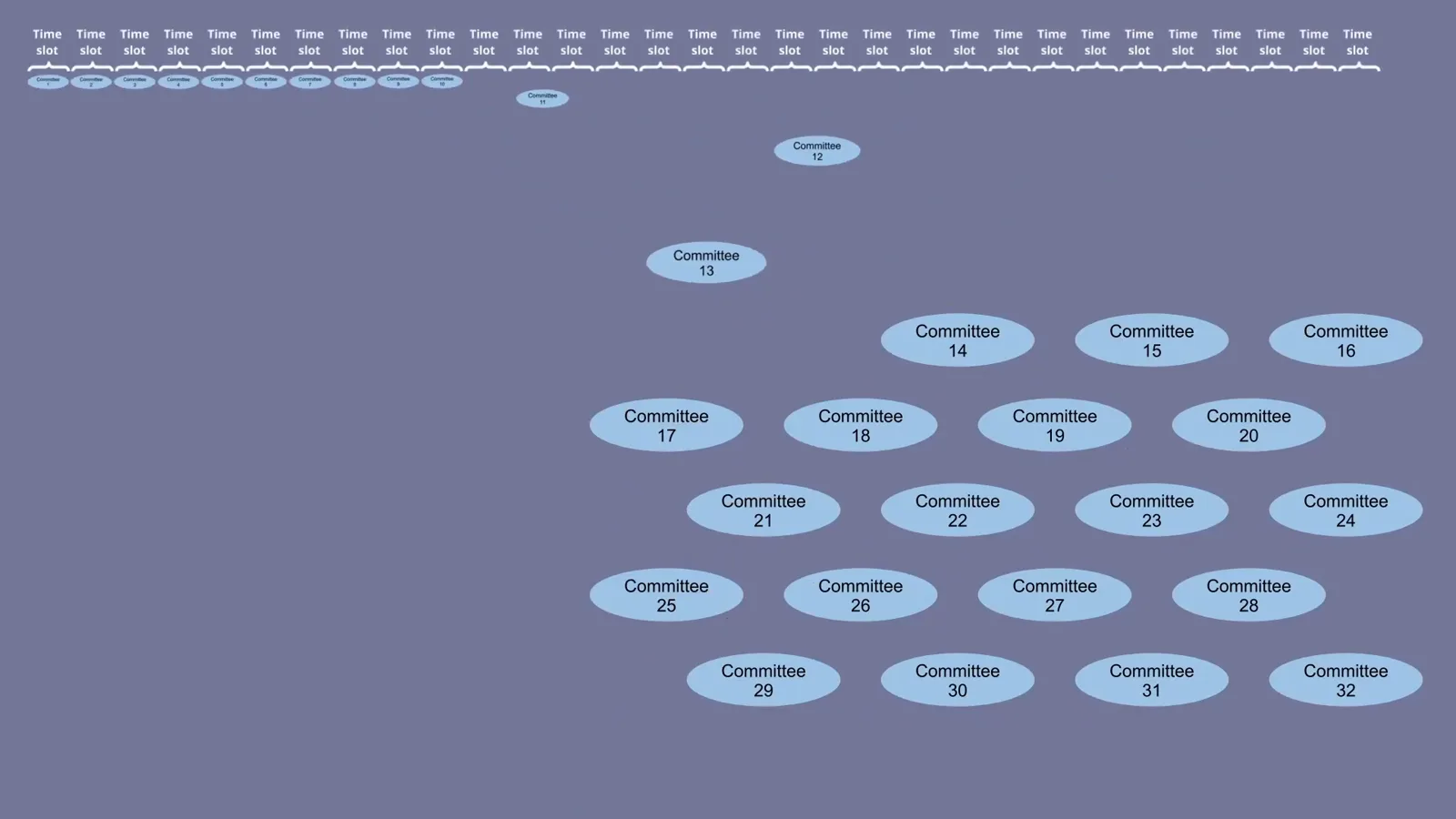

   Hearing from hundreds of thousands of validators takes rhythm. Ethereum slices time into slots of 12 seconds and groups 32 of them into an epoch — 6 minutes and 24 seconds, the heartbeat of proof-of-stake consensus. Every epoch the protocol reshuffles: all staked validators are randomly split into committees, one committee on duty per slot. Even the randomness is generated in-protocol: validators' BLS signatures are mixed into an unpredictable seed that no one can game as long as a single participant is honest.



2. 9

   One committee, one shift

   A committee's shift lasts exactly one slot. Its first member proposes the block; everyone else attests to what they believe is the chain's head. Each validator may cast only one attestation per epoch — sign two conflicting votes and you have equivocated, slashable evidence. The constant reshuffling doubles as a defense: with committees redrawn every epoch, an attacker cannot know in advance which validators they would need to bribe or capture to sway a particular slot.



3. 10

   12,000 votes in, one signature out

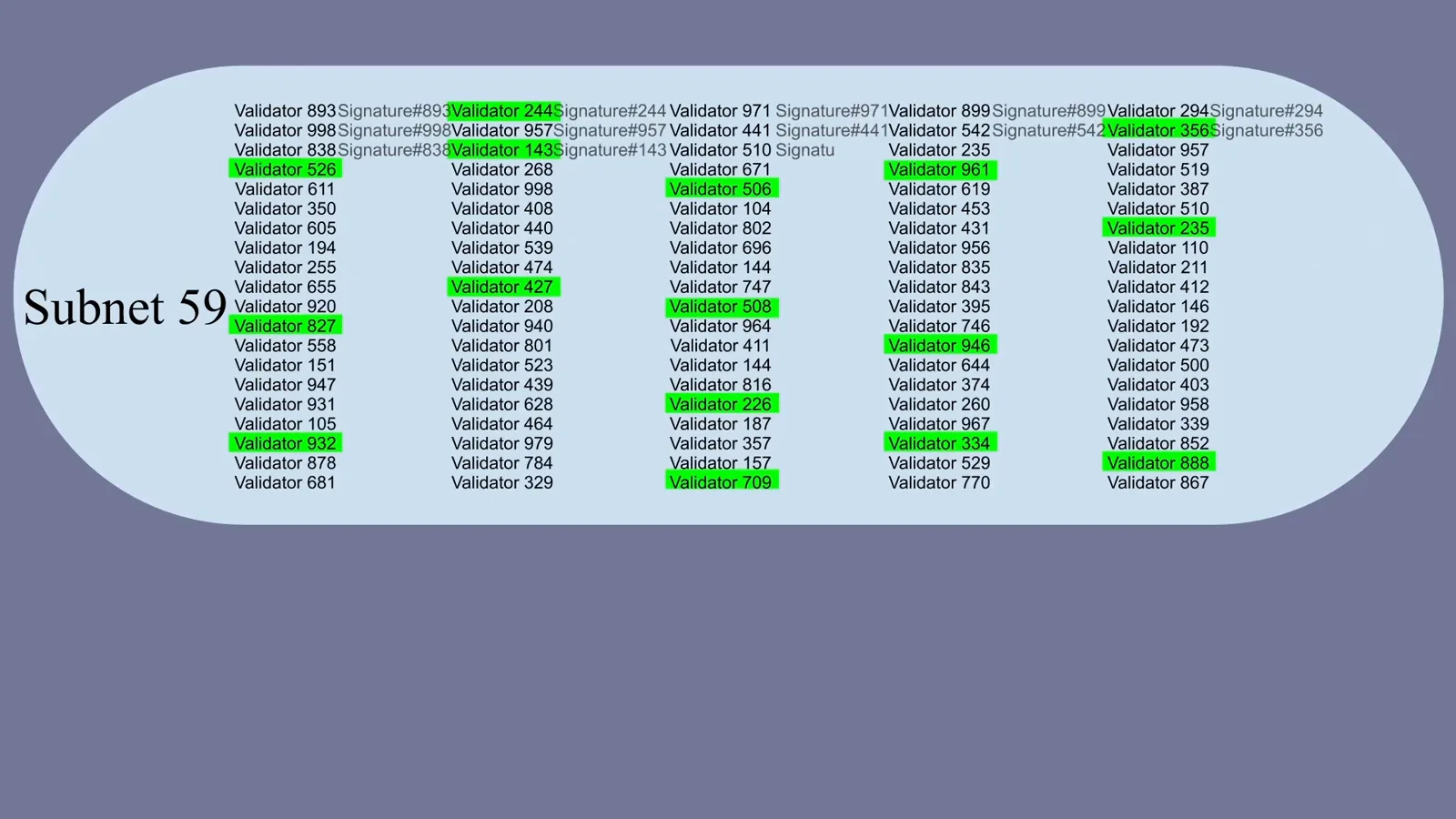

   Twelve thousand attestations per block would drown the network in data, so Ethereum aggregates. Committees are divided into 128 subnets of roughly 100 signatures each; within every subnet, 16 randomly chosen aggregators compress their neighbors' votes into a single BLS signature. The block proposer collects the best signature from each of the 128 subnets and folds them together. What lands in the block is one BLS aggregate speaking for more than 12,000 validators.



4. 11

   Why exactly 32 ETH

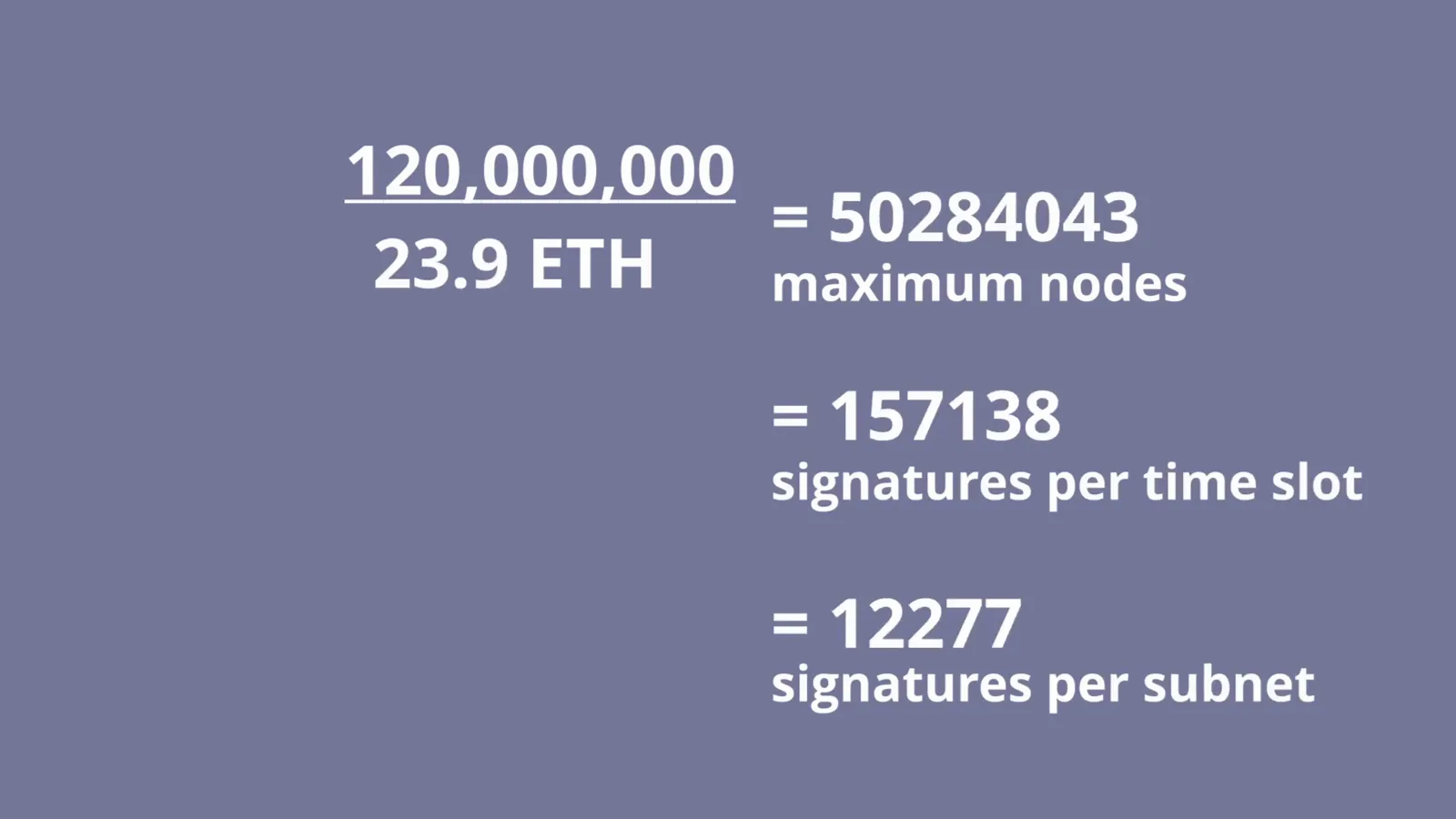

   Because every validator is one signature, and signature count is the cost. The video runs the numbers: if the minimum dropped to 23.9 ETH, 120 million staked ETH would mean over 50 million validators and 157,138 signatures per slot; at 3.6 ETH it explodes past a million per slot. Holding the floor at 32 ETH makes every signature weigh the same and keeps the per-slot vote small enough to aggregate on ordinary hardware — decentralization as a design constraint, not a slogan.



1. 12

   The income is in the voting, not the proposing

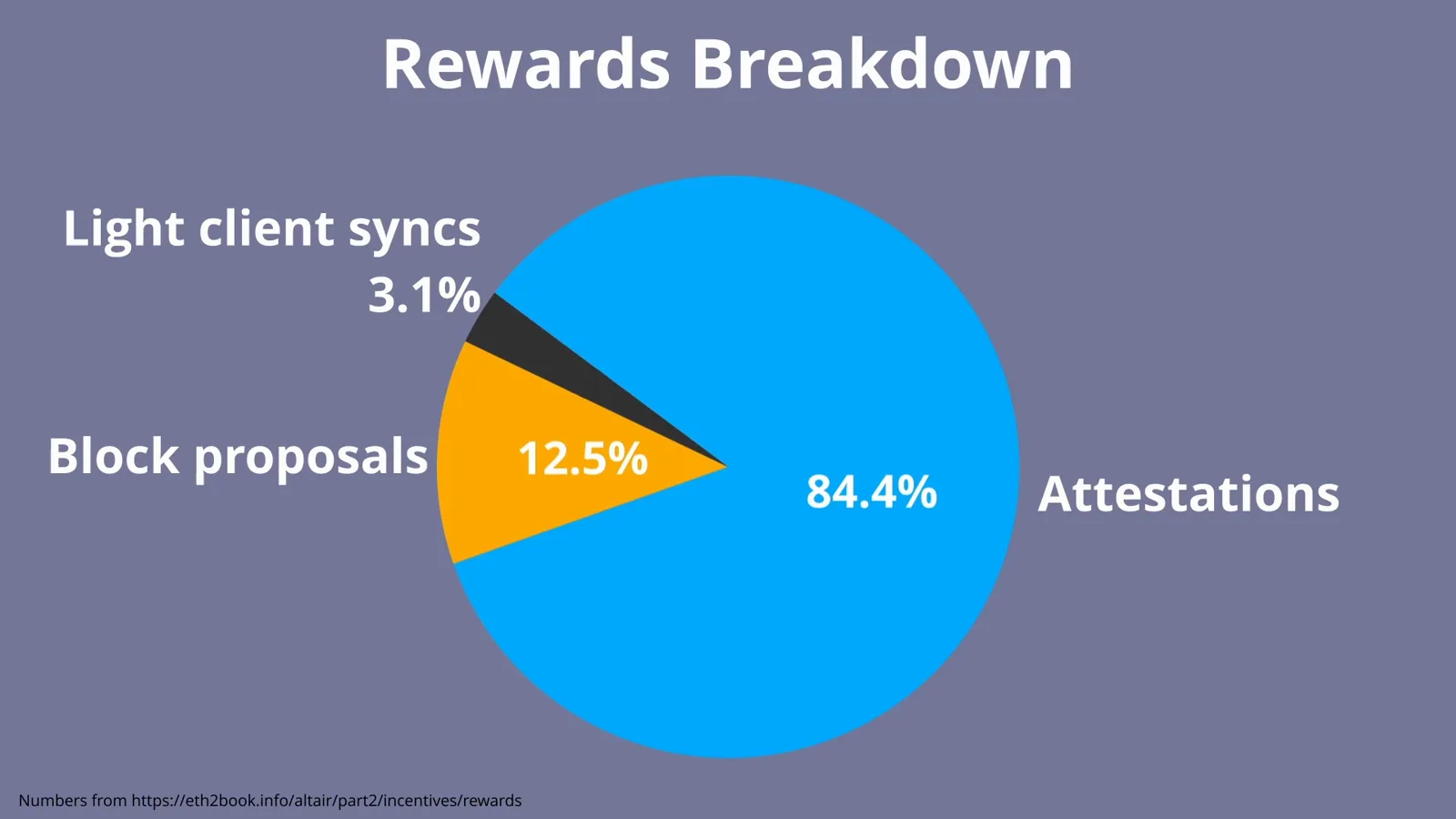

   Validators are paid for showing up — but not equally for every task. The rewards pie tells the story: 84.4% of validator income comes from attestations, 12.5% from proposing blocks and 3.1% from sync duties for light clients. A proposal pays enormously more — the video estimates about 23.6 million Gwei versus 17,631 Gwei per attestation, roughly a thousandfold — but proposals arrive only a few times a year. For a steady return, attesting on time, every epoch, is the job.



2. 13

   Issuance floats with the stake

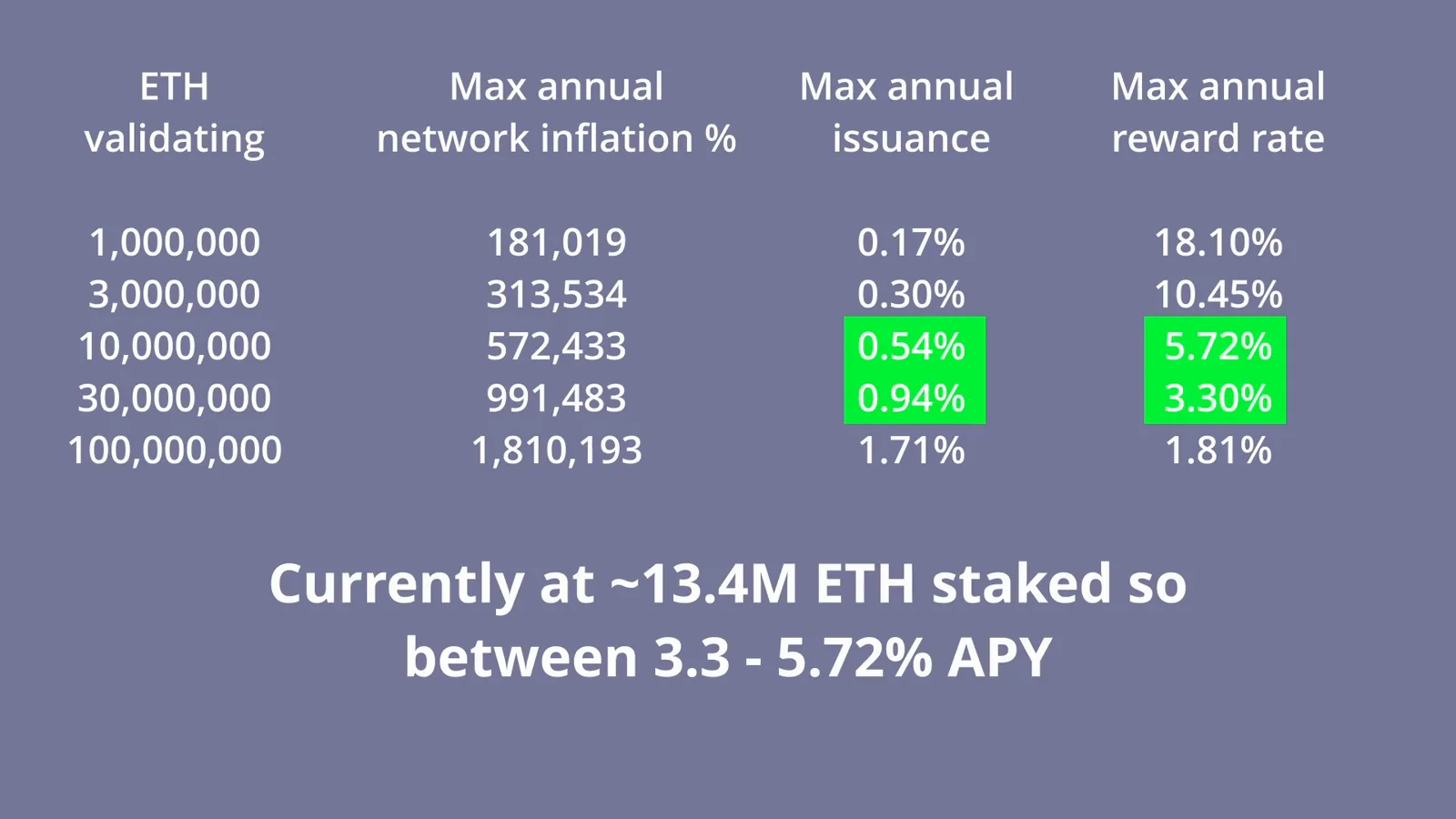

   None of these rewards are fixed. Total issuance scales inversely with how much is staked: the table shows 0.17% annual issuance at 1 million ETH staked, 0.54% at 10 million and 0.94% at 30 million — with validator APY of 5.72% at the 10-million mark, and 3.3% to 5.72% at the 13.4 million ETH staked when the video was made. After The Merge, mining rewards vanished entirely, cutting new ETH issuance by roughly 90% — the birth of the 'ultrasound money' era.



3. 14

   Casper: the ghost that stamps 'final'

   GHOST has a limit: it makes reverting the chain progressively unlikely, but it never declares the matter settled. That is the job of Gasper's second half — Casper, the Friendly Finality Gadget. Casper is a BFT-style overlay running on top of GHOST, voting in rounds: one round per epoch. When validators representing two thirds of the staked ETH agree on a checkpoint across consecutive rounds, that checkpoint is finalized — irreversible by economics and by consensus alike.



4. 15

   Attack the vote, burn your own stake

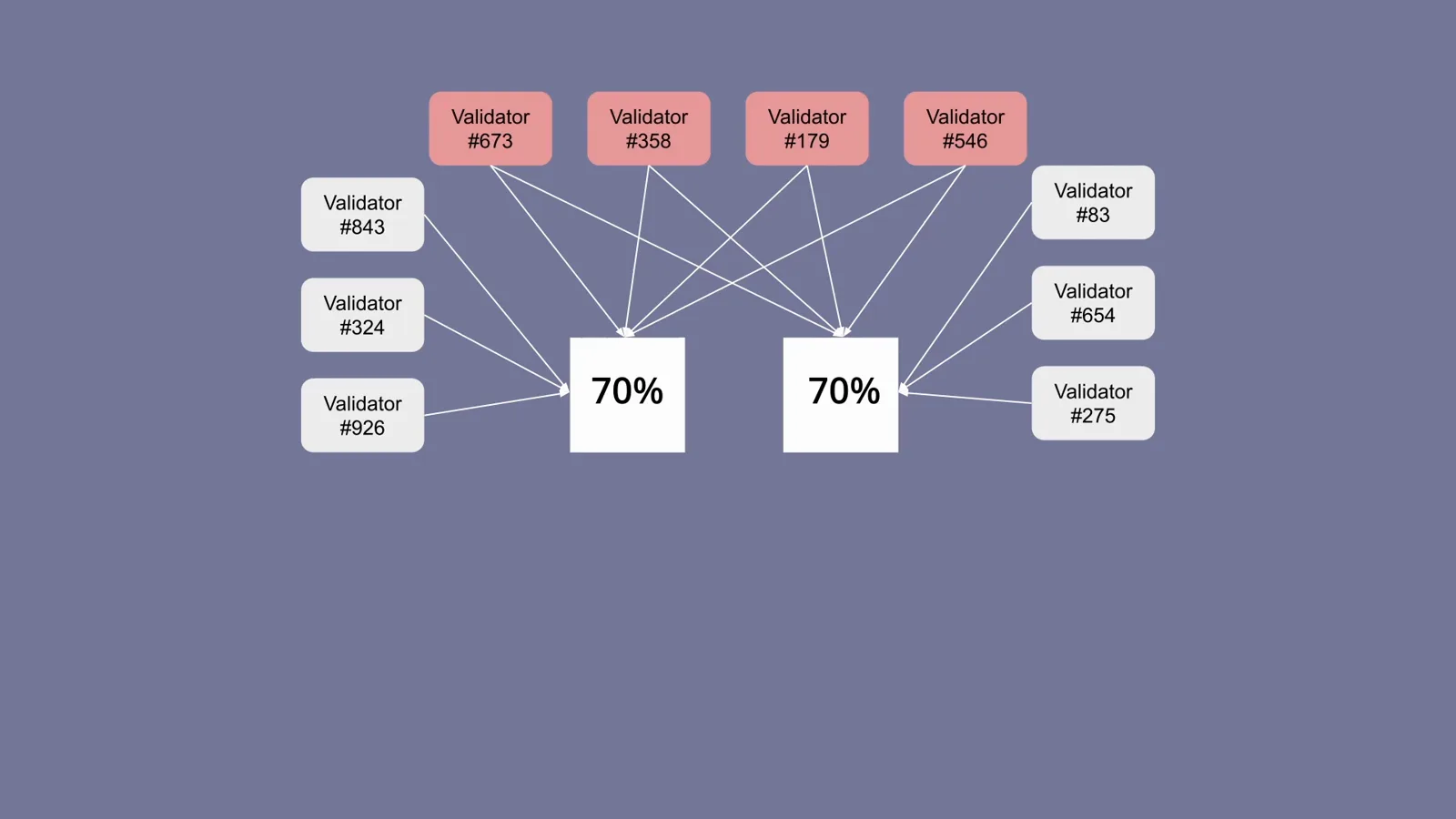

   The two-thirds threshold invites a tempting attack: an adversary voting for both sides of a fork could push each side past 67%. But double votes are self-incriminating — the same validator's signature appears on conflicting blocks, visible to everyone. Slashing burns the offender's stake, and once penalties eat it below 16 ETH the validator is removed from the contract, so the attack gets a handful of tries, not infinite ones. If finality ever stalls, inactive validators leak stake until two-thirds participation returns.



5. 16

   After The Merge: irreversible every 13 minutes

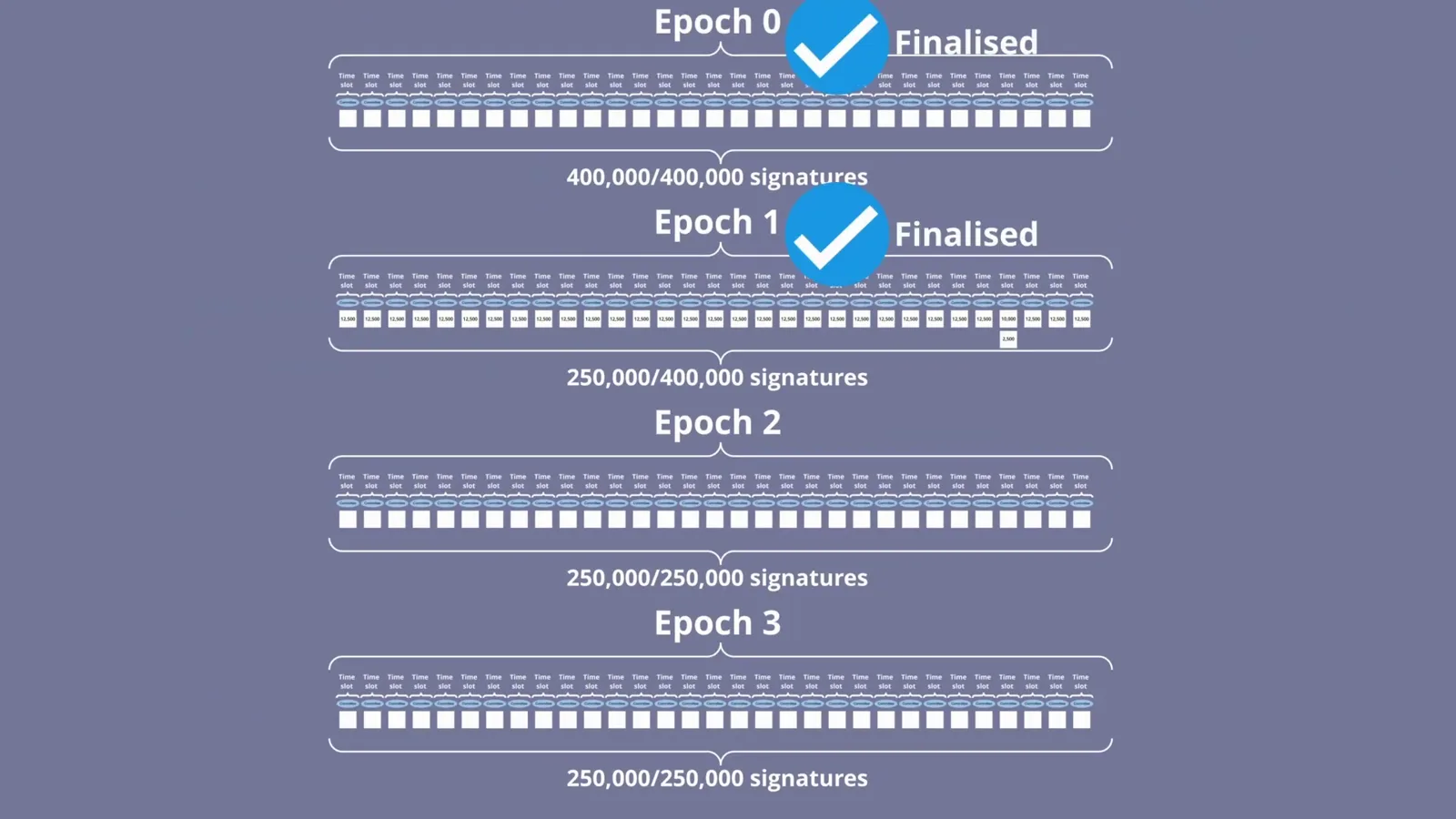

   The end state is the checkpoint board: Epoch 0 and Epoch 1 stamped Finalised while later epochs wait for their votes to fill. Under proof of work, six confirmations gave probabilistic comfort; since The Merge, finality lands about every two epochs — under 13 minutes — and it is absolute. One trade-off remains: a brand-new node cannot work out from genesis alone which chain is real, so it accepts a recent checkpoint from peers — Ethereum calls this weak subjectivity, its most debated compromise.
